Version 14.0 for download available!

With ahp.cad you’re receiving a great tool for your daily work.

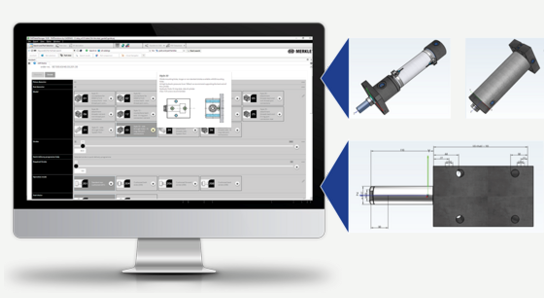

In addition to the assembly and export of CAD data, ahp.cad offers comprehensive documentation of hydraulic cylinders in the platform-independent PDF file format, including 3D representation!

Because less computers have a CD drive on the working desk and use a USB-stick is often hard regulated, the newest version of the ahp.cad (v14.0) is available as a free download.


News and features:
• Complete new AHP Merkle configurator
• Quick delivery program configurable separately
• New cylinder description of cylinder with inductive proximity switches
• New description of DHZ 160 and DHZ 250
• Datasheet export with the summary of the cylinder configuration and 2D drawing (PDF datasheet)
• Export of CAD data in SAT, STEP, IGES, DXF, DWG
• New product integration of locking cylinder (VBZ) and block cylinder with position sensing (BZP)
• Extended accessories (for example significant extensions for standard cylinder, new coupling counterpart…)








Download infomation

Compatible: Windows 7, Windows 10
Language: German, English, French, Spanish, Italian, Portuguese, Czech, Polish, Hungarian, Russian, Chinese, Swedish, Danish, Finnish
Version: v14.0 from May 15, 2019
File size: Approx. 1GB
Installation: Unzip the zip file in a directory of your choice and start "cdstart.exe" in the folder. Then you can either install the CD, a directory will be created in the start menu, or you can always run the software from the directory of your choice.
